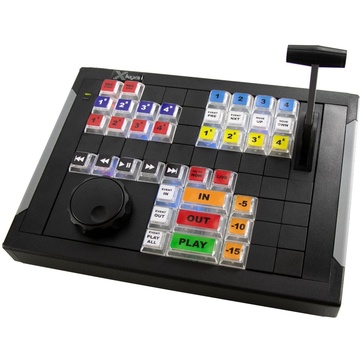

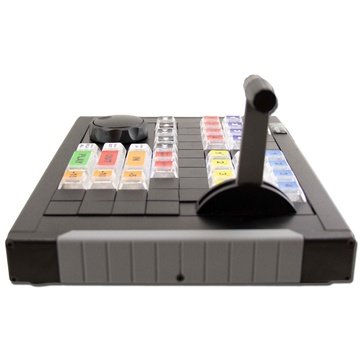

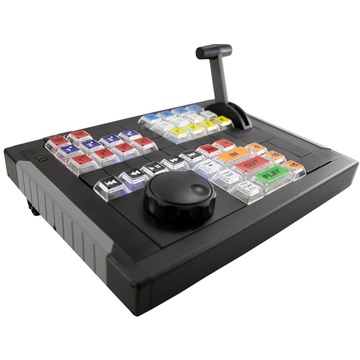

X-keys XKE-64 Replay Controller

$1,625.03

The X-keys XKE-64 Replay provides a cost-effective instant replay control solution.

Out of stock

Join the waitlist to be emailed when this product becomes available
Categories: , ,

Description

Overview

The X-keys XKE-64 Replay Controller is designed by experienced instant replay operators to take full advantage of features in vMix Instant Replay. Instantly customizable. A perfect match for the template included in vMix v22 and newer.

The X-keys XKE-64 Replay provides a cost-effective instant replay control solution for live streaming or recording sports. The vMix template provides instant setup of all keys and indicators to control all four channels of instant replay in vMix Pro as well as instantly creating clips for multiple highlight reels.

Key Features:

  • Industry-standard jog & shuttle control for setting in and out points.
  • Smooth action T-bar for live playback speed control.
  • Instant setup in vMix with built-in template.
  • Heavy-duty extruded aluminium case with powder-coated finish.
  • USB connection to computer.
  • Easily add additional keys or change key location to suit requirements.

Specifications

Overview

The X-keys XKE-64 Replay Controller is designed by experienced instant replay operators to take full advantage of features in vMix Instant Replay. Instantly customizable. A perfect match for the template included in vMix v22 and newer.

The X-keys XKE-64 Replay provides a cost-effective instant replay control solution for live streaming or recording sports. The vMix template provides instant setup of all keys and indicators to control all four channels of instant replay in vMix Pro as well as instantly creating clips for multiple highlight reels.

Key Features:

  • Industry-standard jog & shuttle control for setting in and out points.
  • Smooth action T-bar for live playback speed control.
  • Instant setup in vMix with built-in template.
  • Heavy-duty extruded aluminium case with powder-coated finish.
  • USB connection to computer.
  • Easily add additional keys or change key location to suit requirements.

Specifications

Operating System Use: Any OS via USB HID. Programming: Windows XP through 10
Free Programming Software Windows: P.I Engineering SDK
Free Software Development Kits Windows (C++, C#, VB.NET)
Linux (C++)
Android (Java)
Raw HID (any language/OS)
Emulation Modes HID keyboard, HID mouse, HID game controller, HID multimedia
Analog Controls T-bar: continuously variable MDM™
Jog Knob: 10 detents, one command sent with each detent in each direction
Shuttle Wheel: spring return to center with seven programmable zones in each direction
Switch Types Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations
Number of Keys 64 single keys
Actuation Force 120g (4.2oz) break-over, 60g (2.1oz) hold
Key Cap Type Relegendable with Cherry MX compatible stem
Key Cap Size .625” (16mm) sq.
Key Spacing 0.75″ O.C.
Optional Keys 2×1, 1×2, and 2×2
Backlighting 1 blue and 1 red addressable LED under each key
Connector Wired USB standard “A” plug
Cord Length 118” (3m)
Dimensions 9.75″ x 7.3″ x 1.8″ (248mm x 185mm x 46mm)
Weight 62 oz (1.7 g)
USB Type USB 1.1 compatible through 3.0 Type-c with adapter
Power Source USB port, nominal voltage = 5 VDC
Current Draw No backlight: 50 mA, Blue backlight full: 120 mA, Red backlight full: 170 mA, All backlights: 230 mA
Temperature Range -20 to 60 C
Memory Capacity Approximately 21,000 keystrokes or commands in onboard memory
Memory Type EEPROM, non-volatile memory (X-keys retains memory for over 200 years)
Environmental Rating IP 40, typical indoor office environment
Certifications FCC class B, CE, RoHS, WEEE compliant
