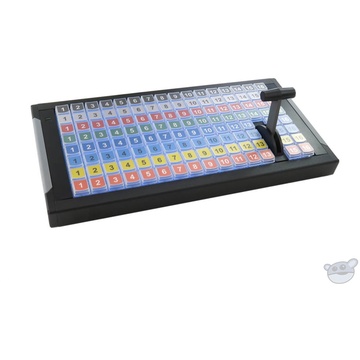

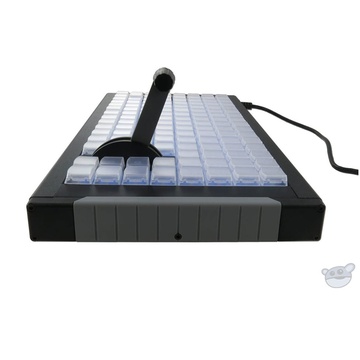

X-keys XKE-124 T-Bar USB Keyboard

$1,483.90

Smooth, reliable fader input with 124 keys

Out of stock

Join the waitlist to be emailed when this product becomes available
Categories: , ,

Description

Overview

X-keys® XKE-124 T-Bar USB Keyboard : One hundred twenty-four keys with an embedded T-bar fader to create the perfect control panel for your application. Keys may be replaced by blockers or indicators to create an intuitive layout for live or post production video control.

  • Smooth and solid T-bar reports 0-255 linear position value
  • 124 keys
  • Heavy duty extruded aluminum case with powder coated finish
  • Addressable blue and red backlighiting for each key
  • USB connection to computer
  • Also offers unique USB HID data reports for full integration
  • A wide range of key caps and blockers available

The XKE-124 offers a smooth, accurate, and reliable T-bar control with 124 keys to create the perfect control panel for any application. Single units stand readily available for experimentation and prototyping. We support every customer from initial purchase and prototyping through implementation of multiple control consoles.

Prototyping The XKE-124 T-Bar ships fully populated with 124 relegendable keys – perfect for testing multiple layout options. Add optional large keys and key blockers to refine the layout. Using an established hardware platform saves time moving from prototype to production.

Production When it comes time to reproduce your finished prototype, select options ranging from printed key legends to acrylic printed ABS keys to double-shot molded key caps. We offer custom brand labeling, assembly, programming, and testing to provide a delivered plug-and-play solution. We specialize in 10-100 unit custom control solutions with the capability to step up to thousands of units for large scale deployment.

  • Use: Any OS via USB HID | Programming: Windows XP through 10, Mac OS X 10.4 through 10.10
  • Free Programming Software
  • Windows: MacroWorks 3.1
  • Mac: ControllerMate for X-keys
  • Free Software Development Kits
  • Windows (C++, C#, VB.NET)
  • Linux (C++)
  • Android (Java)
  • Raw HID (any language/OS)
  • Emulation Modes
  • HID keyboard, HID mouse, HID game controller
  • Switch Types
  • Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations
  • Number of Keys
  • 124 single keys
  • Actuation Force
  • Approx. 2.5 oz (72g) break-over, approx. 1.5 oz (42g) hold
  • Key Cap Type
  • Relegendable with Cherry MX compatible stem
  • Key Cap Size
  • 625” (16mm) sq.
  • Key Spacing
  • 75″ O.C.
  • Optional Keys
  • 2X1, 1X2, 2X2
  • Backlighting
  • 124 blue and 124 red LEDs, individually addressable
  • Connector
  • Wired USB 2.0 standard “A” plug
  • Cord Length
  • 56” (1.42 m)
  • Dimensions
  • 14″ x 7.3″ x 1.8″ (279mm x 185mm x 46mm)
  • Weight
  • 7lbs (2.13 kg)
  • USB type
  • USB 1.1 compatible through 3.0
  • Power Source
  • USB port, nominal voltage = 5 VDC
  • Current Draw
  • NO backlight: 37 mA , Blue backlight full: 176 mA, Red backlight full: 265 mA, All backlights full: 358 mA
  • Temperature Range
  • -20 to 60 C
  • Memory Capacity
  • Approximately 21,000 keystrokes or commands in onboard memory
  • Humidity
  • 80% Rh non-condensing
  • Environmental Rating
  • IP 40, typical indoor office environment
  • Certifications
  • FCC class B, CE, RoHS, WEEE compliant

Box Contents:

  • 1- X-keys XKE-124 T-bar
  • 1- Double key set (2 tall, 1 wide, 1 key puller)
  • 2- Angled feet
  • 4- Legend Sheets (two pre-printed, two blank)
  • 1- Product Manual
