SEETEC 150m SDI/ HDMI Wireless Video Transmission System WHD151

$2,431.00

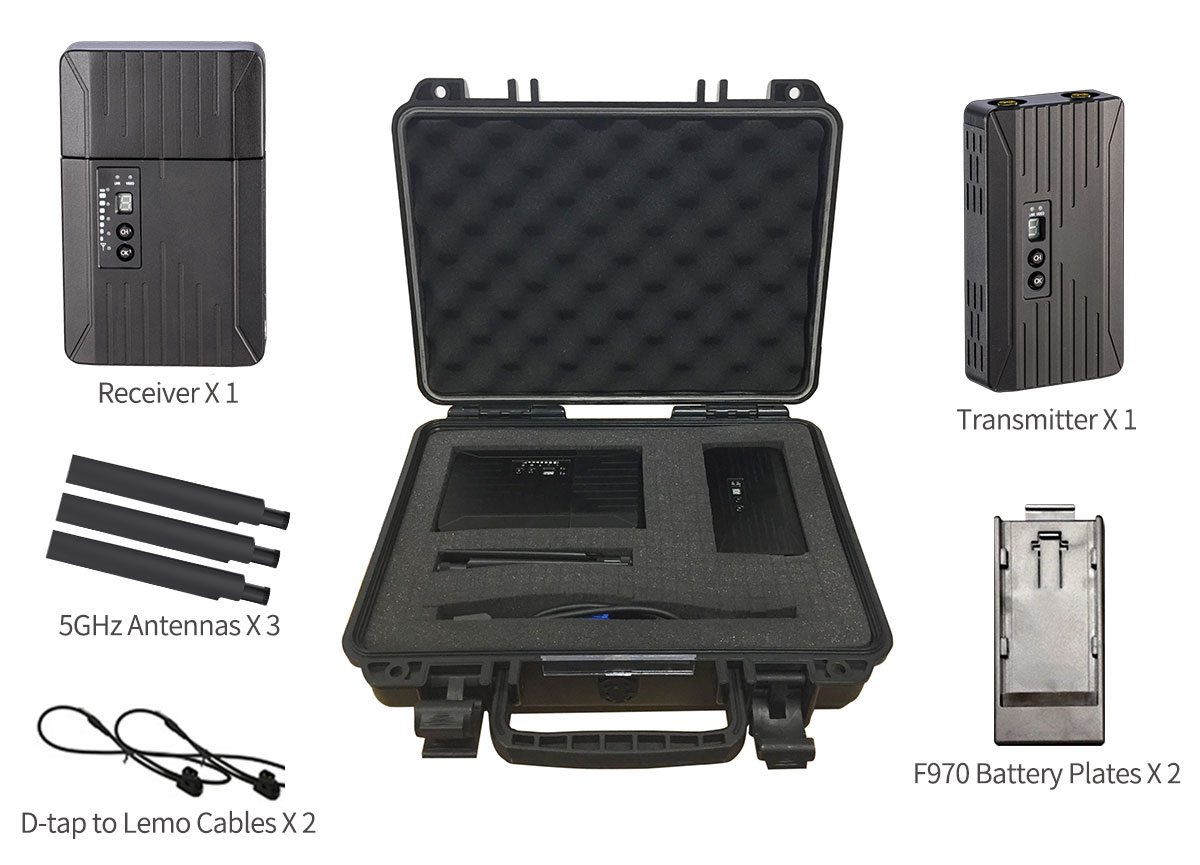

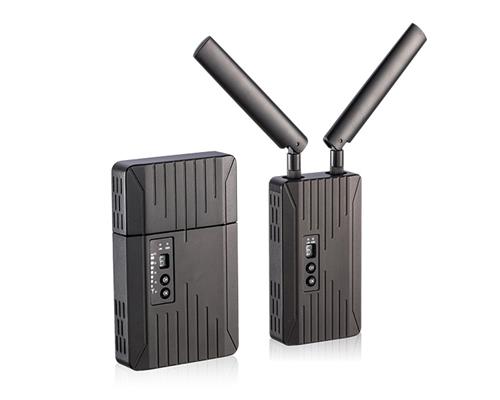

The SEETEC WHD151 is a broadcast industry wireless system, includes a transmitter and a receiver, with WHDI (OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI wirelessly transmitted to 150 meters  (max 200m). Good stability and strong anti-jamming capability under 5GHz frequency band. The system is a pure hardware connection, plug and play build. Exquisite design, equipped with external SONY F970 battery mechanical interface for battery plug-in. Wide use in film shooting, live sporting events, director monitoring, remote monitoring, live wedding broadcasting and forum broadcasting etc.
1. Professional WHDI (MIMO/OFDM) technology
2. Uncompressed 3G/HD/SD-SDI and HDMI
3. Support full-hd 1080P/60Hz video display with very low latency
4. 150m (LOS) transmission distance (max 200m)
5. 5.1-5.9GHz license-free operation frequency
6. New OLED screen, faster FM and more intuitive display parameter
7. Multicast – 1 transmitter to multi receivers
8. AES-128 encryption transmission
9. Industrial metal case, stable and reliable
10. Pure hardware connection, Plug and Play

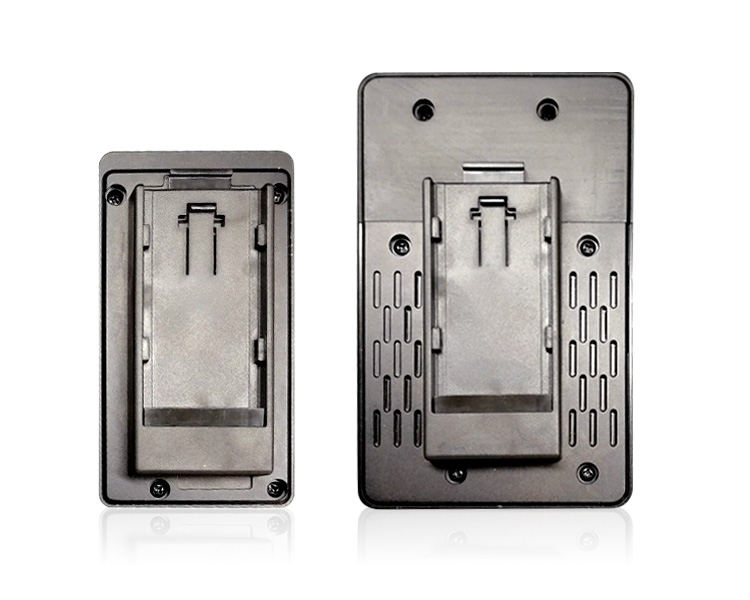

11. Support external Li-battery supply for mobile convenience
12. Support Hot-shoe installation with 1/4 screw nut
13. Wide voltage design, support DC7V-36V voltage

Out of stock

Join the waitlist to be emailed when this product becomes available
Categories: , ,

Description

Specifications

3G-SDI/HDMI Transmitter (WHD151)

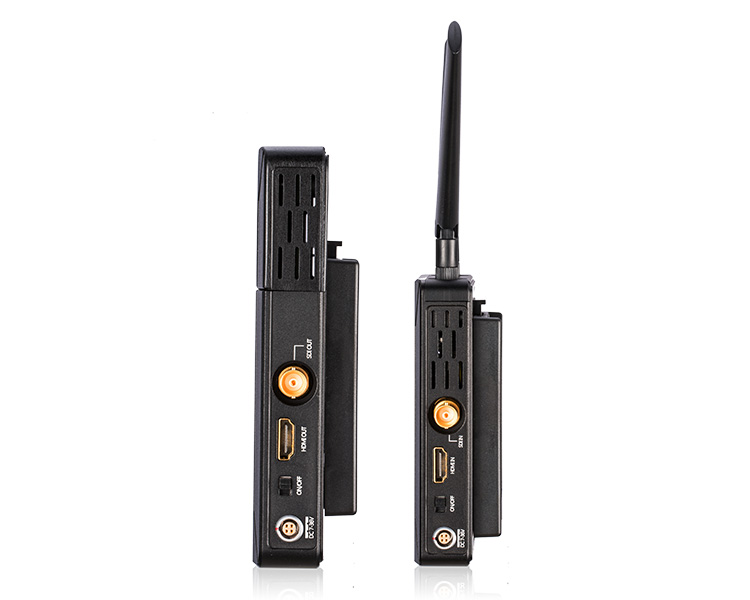

 Input  3G/HD/SD-SDI×1

HDMI×1
 SDI  Format  480i (59.94)

720p (60/ 59.94/ 50)

1080i (60/ 59.94/ 50)

1080P (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98)

3G, HD and SD-SDI (auto-selected)

SMPTE-259/274/292/296/372/424/425
 HDMI Format  525i/ 625i

720p (50/ 59.94/ 60)

1080i(50/ 59.94/ 60)

1080p (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98)
 Input Audio Format  SDI embedded 4 channel 24 bit/48KHz
 Signal Indicator  Link-Yellow; Video-Green
 Transmission Power  Maximum 15dBm
 Frequency Band  5.1-5.9GHz, configurable with China, North American, Europe, etc
 Modulation Mode  OFDM 16QAM
 Transmission  Distance  150m (MAX 200)
 Latency  ≤1ms
 Occupied Bandwidth  20/40MHz
 Install Way  1/4″-20 Thread Socket
Working Temperature  0 ~ 40°C
 Storage Temperature  -20 ~ 60°C
 Power Connector  4-PIN LEMO DC
 Input Voltage  DC 7-36V
 Power Consumption  <6.5W
 Unit Size  122.2Lx67x25.3mm (don’t include antennas)
 Unit Weight  270g
3G-SDI/HDMI Receiver (WHD151)
 Output  3G/HD/SD-SDI×1

HDMI×1
 SDI  Format  480i (59.94)

720p (60/ 59.94/ 50)

1080i (60/ 59.94/ 50)

1080P (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98)

3G, HD and SD-SDI (auto-selected)

SMPTE-259/274/292/296/372/424/425
 HDMI Format  525i/ 625i

720p (50/ 59.94/ 60)

1080i(50/ 59.94/ 60)

1080p (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98)
 Output Audio Format  SDI embedded 4 channel 24 bit/48KHz
 Signal Indicator  Link-Yellow; Wireless RSSI-Blue (5 LEDs); Video-Green
 Receiver Sensitivity  -75dBm
 Frequency Band  5.1-5.9GHz, configurable with China, North American, Europe, etc
 Modulation Mode  OFDM 16QAM
 Transmission  Distance  150m (MAX 200)
 Latency  ≤1ms
 Occupied Bandwidth  20/40MHz
 Install Way  1/4″-20 Thread Socket
Working Temperature  0 ~ 40°C
 Storage Temperature  -20 ~ 60°C
 Power Connector  4-PIN LEMO DC
 Input Voltage  DC 7-36V
 Power Consumption  <6W
 Unit Size  152.2×95.4x26mm (don’t include antennas)
 Unit Weight  400g
