Radius Live & vMix – Special Order – POA

Professional productions require professional-grade hardware and NextComputing systems are optimized to utilize vMix to its fullest. Our all-in-one, portable systems like the Radius Live let you take the power of vMix to any location,  running silently and reliably while you broadcast to the world.

Do you work in broadcast and media applications such as real-time graphics, event production, presentation capture, video editing, and on-set data management?

Do your hardware and software requirements keep you chained to large desktop systems or an array of different systems for different tasks?

The Radius Live is an all-in-one ultra-high-performance portable workstation specifically tailored to broadcast and media applications such as yours.

It offers full-size PCIe expansion slots and massive storage capabilities to meet the needs of your most demanding applications. The Radius Live also offers a unique design with low-noise fans and a quiet power supply, providing the performance you need without interfering with noise-sensitive production environments. The chassis also offers an integrated 5.25″ bay option for expansion devices like LTO tape drives, removable SSD carriers, camera card readers, and additional hard drives.

Join the waitlist to be emailed when this product becomes available

Description

Radius Live

  • Compact / Portable

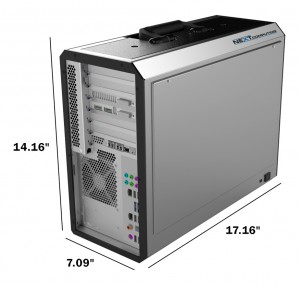

    Briefcase-like form factor; 7.09” D x 16.78” W x 14.16” H
  • Built-In Screen

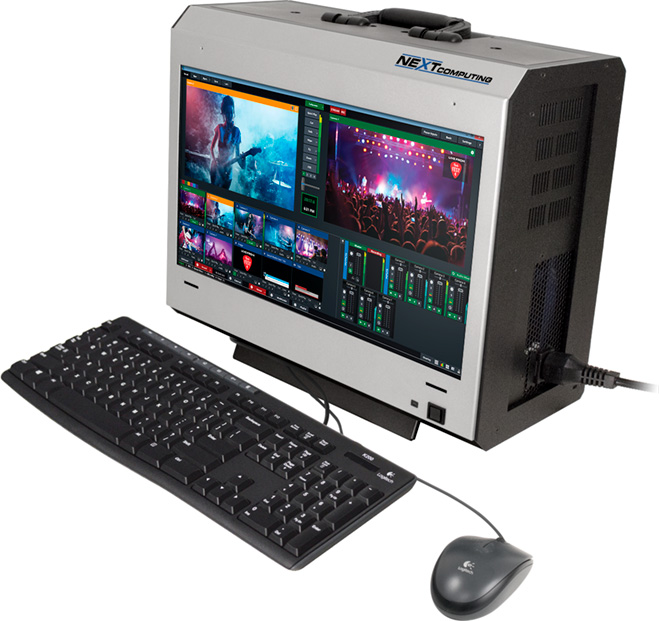

    Integrated 17.3″ Full HD display, with optional resistive touchscreen
  • High-Performance
    Workstation-class performance in a compact chassis for full capabilities anywhere you need to be

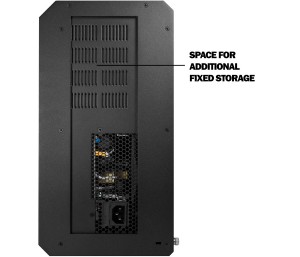

  • Extensive Storage Options
    Combines the latest technology high-performance NVMe SSD storage and other additional SSD storage
  • Flexible Off-Load
    Configurations available with fast off-load via dual Thunderbolt™ 3 Ports (USB Type-C™) 40 Gb/s Bi-directional Bandwidth, DisplayPort 1.2 capable with 4K video throughout, USB 3.1 Gen 2 Type-A, and Wi-Fi
  • Media Bay

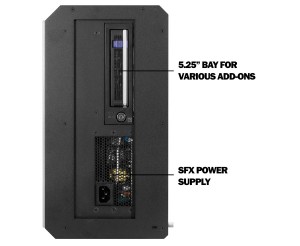

    5.25″ expansion bay for a variety of add-on devices or extra storage
  • Easy Transportation

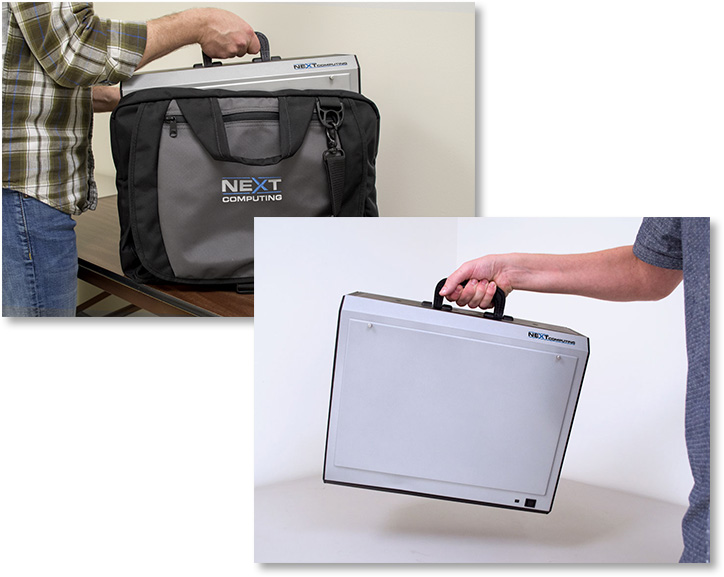

    Includes carrying case for system and accessories. Optional rugged transport cases also available
  • Application Support
    We work directly with our customers every day to ensure that our computers meet their unique requirements

Radius Live Configurations*

Radius Live Portable
for vMix HD
Radius Live Portable
for vMix 4K + Replay
Radius Live Portable
for vMix 4K & Pro
Processor 6-Core 2.80 GHz
Intel Core i5-8400
6-Core 3.7 GHz
Intel Core i7-8700K
10-Core 3.30 GHz
Intel Core i9-9820X
Memory 16GB DDR4 2666MHz RAM 16GB DDR4 2666MHz RAM 32GB DDR4 2666MHz RAM
Storage 250GB M.2 NVMe SSD 1TB M.2 NVMe SSD 1TB M.2 NVMe SSD
Graphics GeForce GTX 1050 Ti 4GB GDDR5 GeForce GTX 1060 6GB GDDR5 GeForce RTX 2080 8GB GDDR6

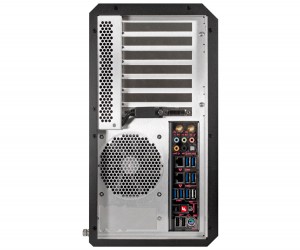

Available Expansion Slots
  • 1 x PCI Express 3.0 x16/x8
  • 1 x PCI Express 3.0 x16/x4
  • 2 x PCI Express 3.0 x1
  • 1 x PCI Express 3.0 x16/x8
  • 1 x PCI Express 3.0 x16/x4
  • 2 x PCI Express 3.0 x1
  • 1 x PCI Express 3.0 x16/x16
  • 1 x PCI Express 3.0 x16/x8
  • 2 x PCI Express 3.0 x16/x4
Included Items

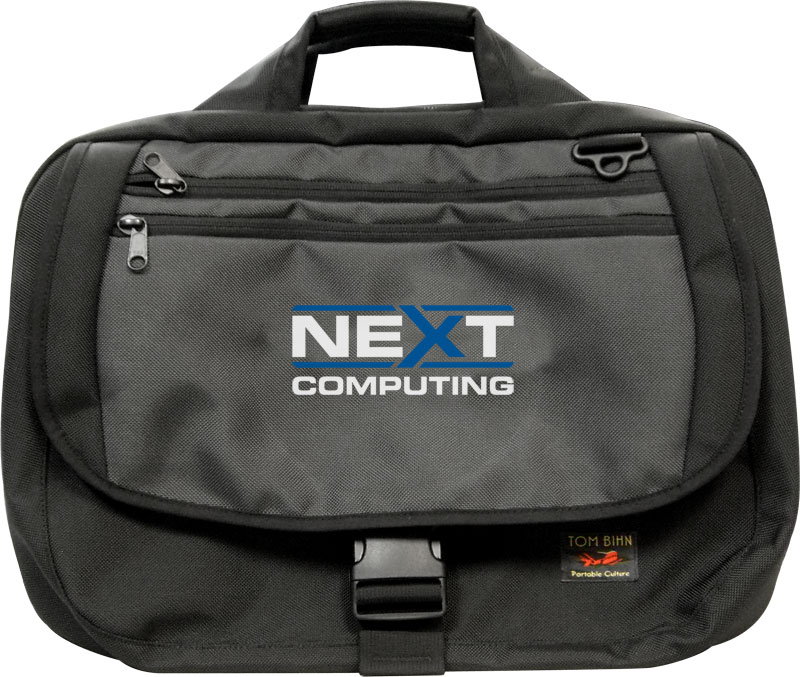

  • Padded carrying case with shoulder strap
  • USB keyboard/mouse kit (English)
Optional Equipment

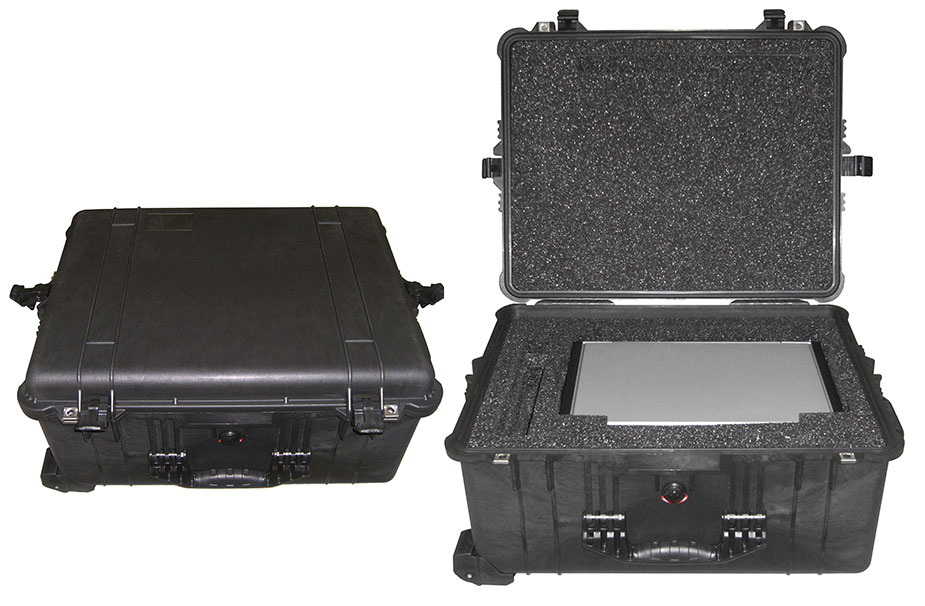

  • Radius Live rugged travel case
  • Integrated touchscreen

*Specifications subject to change and to suit client requirements

vMix Options

vMix Software Comparison Table
Edition Basic Basic HD SD HD 4K Pro
FREE $60 USD $150 USD $350 USD $700 USD $1200 USD
Total Inputs
4 4 1000 1000 1000 1000
Camera / NDI Inputs
2 3 1000 1000 1000 1000
Maximum Resolution 768 x 576 1920 x 1080 768 x 576 1920 x 1080 4096 x 2160 4096 x 2160
Overlay Channels 1 1 4 4 4 4
Recording y y y y 2 Recorders 2 Recorders
Streaming y y y y y
Fullscreen Output y y y y y
External Output y y y y
GT Designer Standard
y y y y y y
100+ Built-In Animated Titles, ScoreBoards, Tickers
GT Designer Advanced
n n n n y y
Custom Animated Titles
Playlist
y y y y y y
Professional Colour Correction
y y y y y y
Video List
n n y y y y
vMix Call
n n n 1 Caller 2 Callers 8 Callers
MultiCorder
n n n n y
Instant Replay
n n n n 1 Camera 4 Cameras
Two External Outputs
n n n n y y
Two Fullscreen Outputs
Four Virtual Outputs
Scripting
n n n n y y
PTZ Control
n n n n y y
