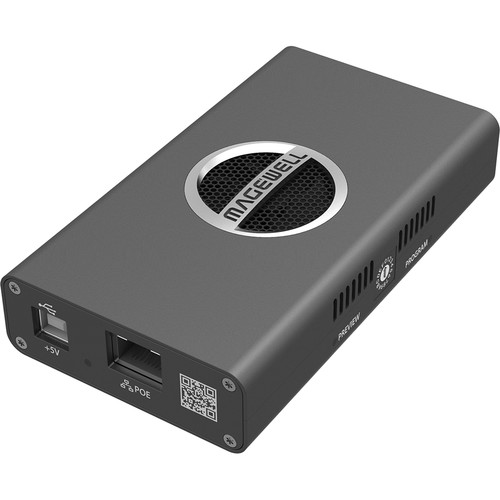

Magewell Pro Convert

$883.30

Convert HDMI video to an NDI stream with the Pro Convert HDMI Plus video signal converter from Magewell. Pro Convert features one HDMI input and one HDMI loop-through output with eight channels of embedded audio, and it supports HDMI input up to DCI 4K 4096 x 2160 at 60 fps. The RJ45 Gigabit Ethernet port supports encoded NDI output up to 2048 x 2160 8-bit 4:2:2 at 120 fps.

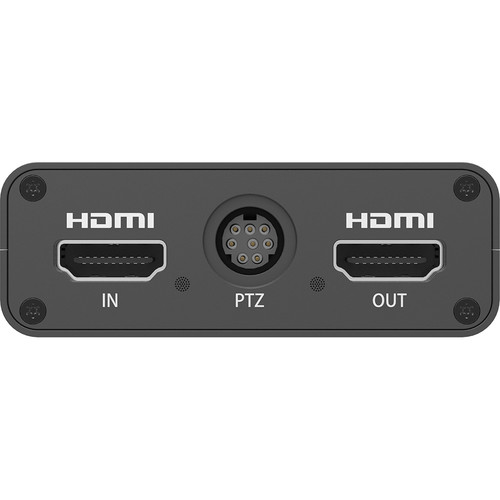

The HDMI loop-through allows you to view your input on a monitor while your NDI-encoded stream can be sent to a variety of NDI-compatible encoding or streaming applications such as OBS, XSplit, vMix, Wirecast, and others via Ethernet. The mini DIN-8 tally/PTZ port provides tally input to pass-through as well as for use with the unit’s status LEDs. The LEDs also indicate power, output, and input signal status.

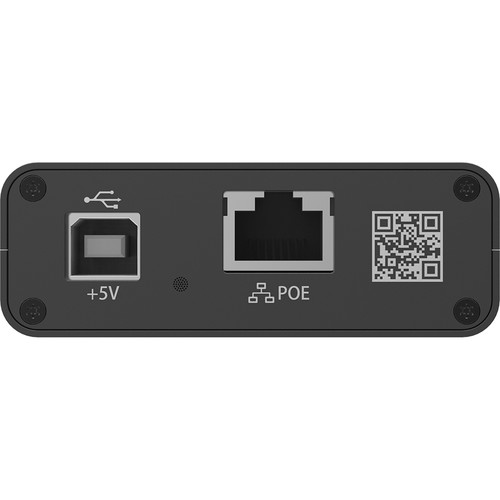

The unit is powered by a 5V power adapter connected to its USB 2.0 Type-B port or via PoE (Power over Ethernet) over its RJ45 port. The Pro Convert can be managed with a web UI to configure settings and to perform firmware updates via the USB port. A 1/4″-20 mounting thread allows you to mount the unit in a rack, bracket, or on a stand. Included with the Pro Convert are a USB cable, a 5V power adapter, a mini DIN-8 cable, and an L-bracket for mounting.

Out of stock

Join the waitlist to be emailed when this product becomes available
Categories: , , ,

Description

Key Features

  • One HDMI input, one HDMI loop-through output with embedded audio
  • Convert one HDMI signal with 8 channels of embedded audio to an NDI stream
  • Supports up to 4K60 input
  • Supports up to 2048 x 2160 8-bit 4:2:2 at 120 fps NDI encoding output
  • USB 2.0 Type-B 5V power and PoE via RJ45 port
  • Mini DIN-8 PTZ/Tally port
  • Support for NDI 3.x
  • Support for 8-channel IEC60958 audio streams
  • Support for extraction of audio formation information and channel status data
  • Support for extraction of video timing information
  • Support for extraction of 3D format information
  • Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode
  • 297 MHz HDMI receiver
  • Adaptive HDMI equalizer
  • Support for customized EDID
  • Support for extraction of AVI/audio InfoFrames

Video Processing Features

  • Video brightness, contrast, saturation, hue adjustment
  • Video deinterlacing
    • Top field only
    • Bottom field only
  • Video aspect ratio conversion
    • Auto or manual selection of output aspect ratio
  • Video color format conversion
    • Auto or manual selection of input color format and quantization range
    • Auto or manual selection of output color format, quantization range, and saturation range
    • Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
    • Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
    • Support for Limited or Full quantization range
    • Support for Limited, Full, and ‘Extended gamut’ saturation range
  • Video frame rate conversion
  • Video mirror flip

NDI Source Name

  • Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’
  • Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’
  • Support for setting board-index, from 0 to F, through on-board rotary switch

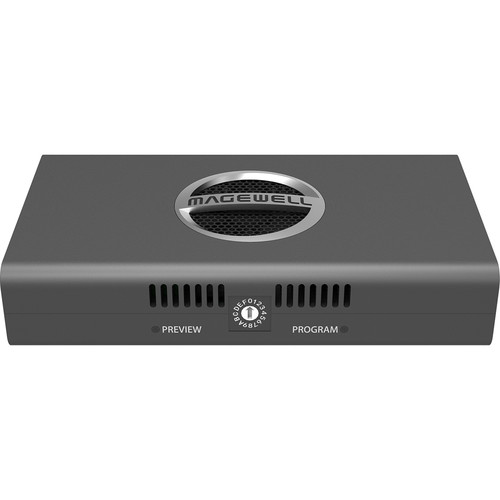

Status LEDs

  • The state of power supply: on/off
  • Tally: preview/program
  • The state of input signal: locked/unlocked
  • The state of loopthrough signal: loopthrough connected and signal detected/undetected

Supported Software

The following software has been tested successfully with the Pro Convert HDMI:

  • OBS
  • XSplit
  • vMix
  • VidBlasterX
  • Wirecast
  • streamstar SW
  • mimoLive
  • NewTek NDI-enabled encoding or streaming software



Supported Web Browsers

The following web browsers have been tested successfully with the Pro Convert Web UI:

  • Microsoft Internet Explorer 11
  • Microsoft Edge
  • Mozilla Firefox version 61 and above
  • Google Chrome version 49 and above
  • Apple Safari 11.1 and above
  • Opera 55.0.2994.44 and above
