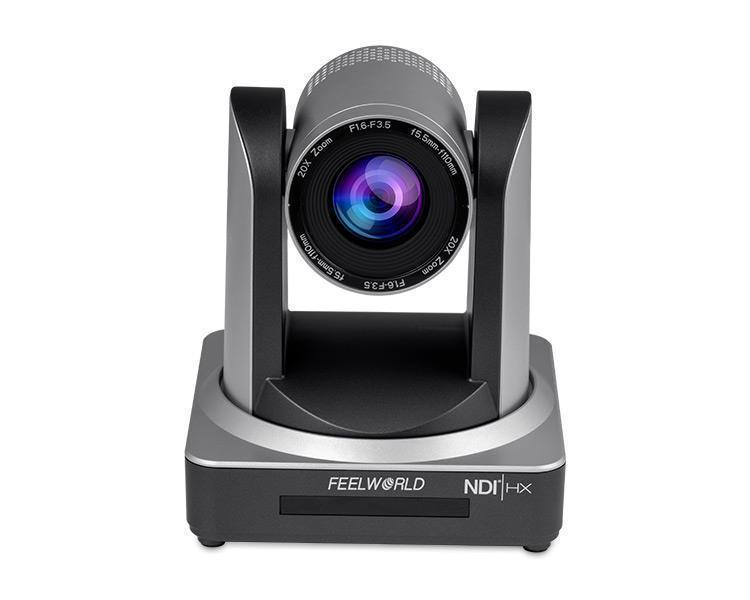

FEELWORLD NDI20X Simultaneous 3G-SDI/HDMI/NDI/IP Live Streaming PTZ Camera with 20X Optical Zoom
All-in-one Live Video Production Solution
FEELWORLD NDI20X is a full HD PTZ camera with 20x optical zoom, simultaneous NDI/IP, 3G-SDI, HDMI video output interfaces. It supports PoE , which allows you easily transmit all the signals and power for the device only by one cable. It is ideal for video conferencing, education, live broadcasting, broadcasting and churches.

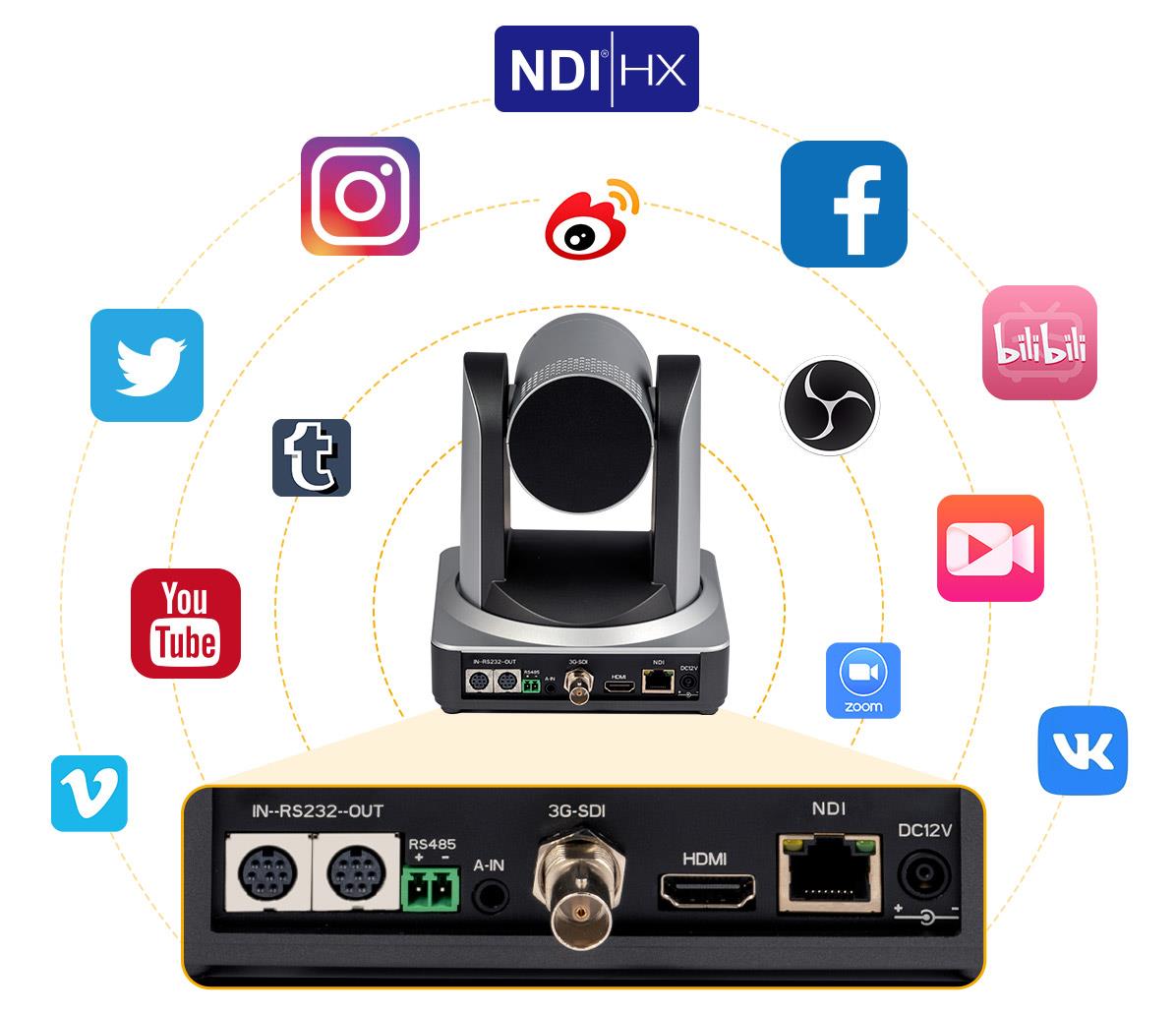

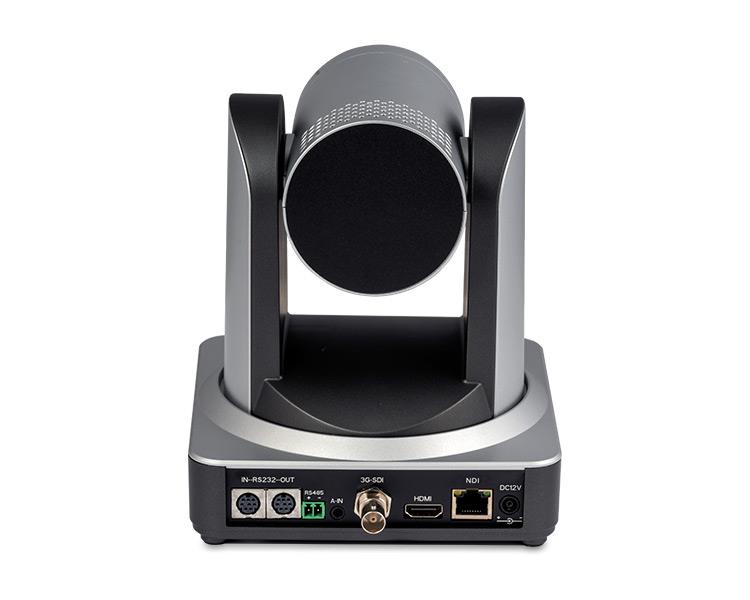

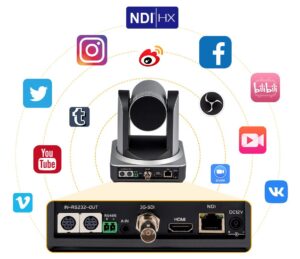

Multiple Video Output – Stream to Your Favorite Platforms.
Simultaneous HDMI, 3G-SDI, and IP/NDI video output and multiple network Protocol allow NDIX20 to easily live streaming to your favorite platforms, such as YouTube, Facebook, Twitch, etc. Note: 3G‐SDI is available for 100m transmission at 1080p60 format.

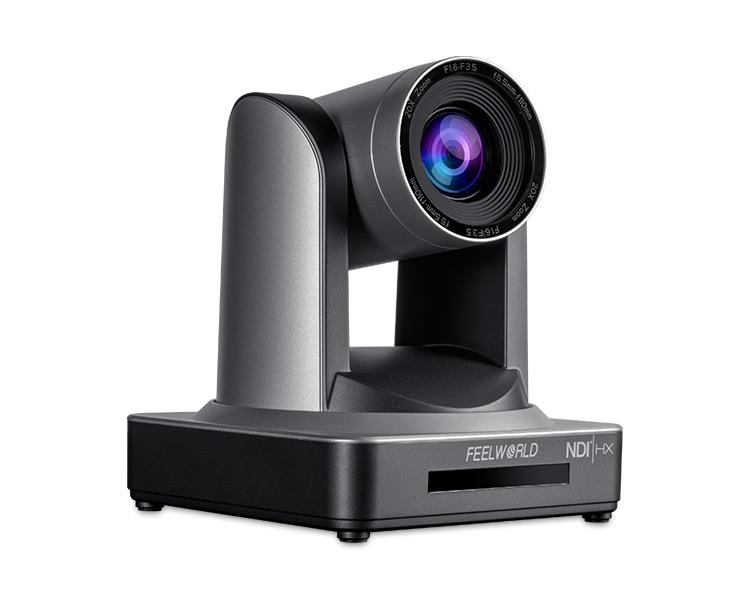

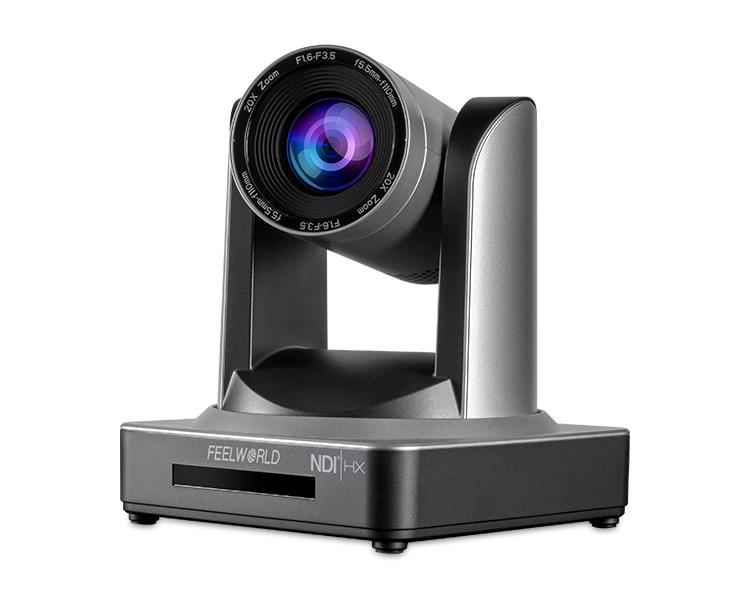

NDI|HX Live Video Production Support Protocol
NDI20X comes with NDI interface transmission protocol, with low-latency video and audio transmission, and reduces wiring costs and deployment time, to meet the needs of studios and on-site multi-camera video production.
PoE Support – No more pesky wires
The PTZ camera supports PoE (Power over Ethernet), just one cable can be used for power, video/audio streaming and control.
1080P@60 HD Image Quality + 20X Optical Zoom – Realize a Life-like Video Experience
The high resolution 1080P@60fps, outstanding color reproduction，20X zoom delivers premium optics and life-like video to create the experience of sitting together in the same room, even if you are a thousand miles away.
Low Light Correction
The low-light performance technology can automatically adjust the brightness level. Every moment can be seen clearly even in dark or back light condition. Outstanding performance and video quality make live recording extremely convenient
H.264&H.265 Encoding, More Smooth and Clear Video motion
IP live streaming supports H.264&H.265 video compression, which makes motion video more fluent and clear under low bandwidth conditions.
Accurate, Smooth and Silent PTZ Movement

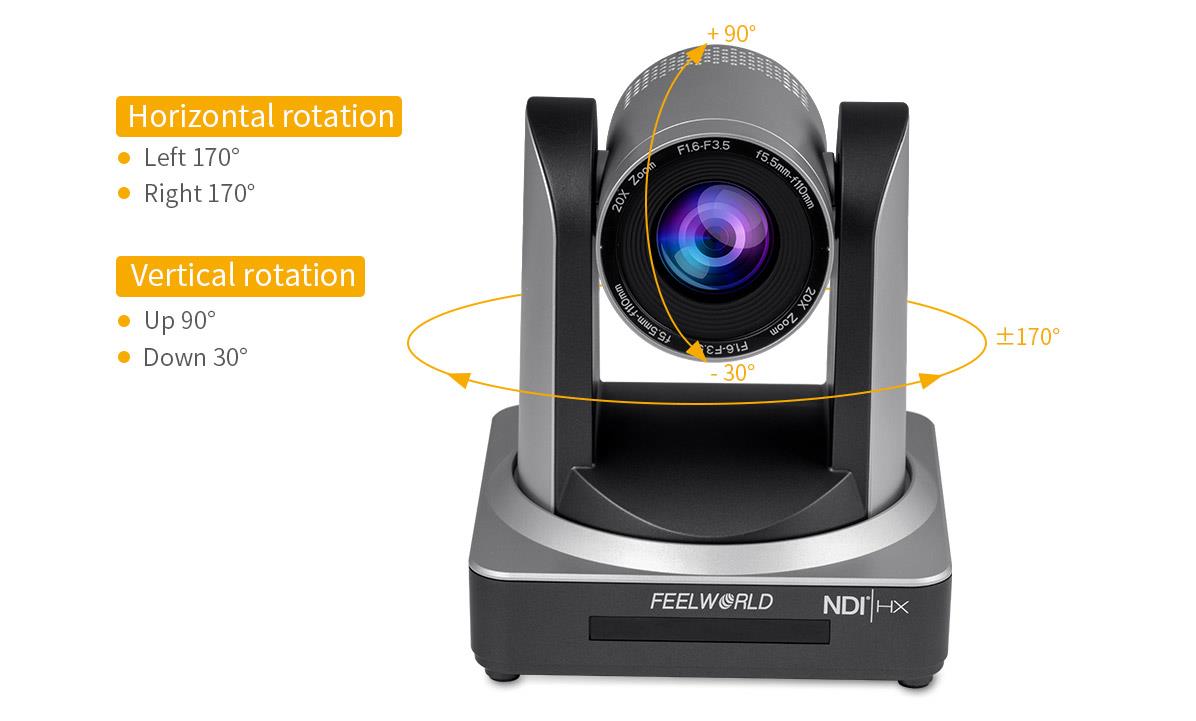

Built-in two-way high speed and silent pan/tilt, the lens can rotate 340° horizontally (±170°) and 120° vertically (-30°～+90°).
Multi Ways to Control Your Camera – Operate Nearby or Far Away
You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also operate it from a remote location with WBESREVER software or FEELWORLD L2 PLUS video switcher.

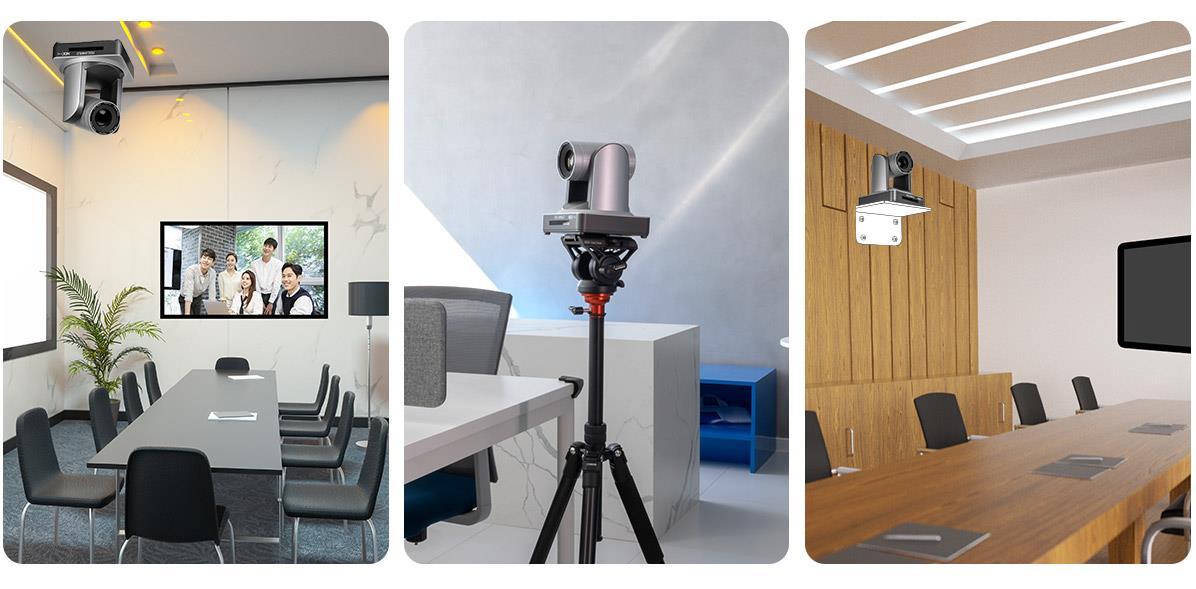

Multiple Mounting Options
NDI20X can be installed on any wall/ceiling/tripod to capture close-up shots for your every Live Video Production.
Note: Bracket not included
| Model | NDI20X |
| Sensor | 1/2.9 inch high quality CMOS sensor |
| Effective Pixels | 2.07 megapixel, 16：9 |
| Output Resolutions | 720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60 |
| View Angle | 3.3°～ 54.7° |
| Focus Length | f＝5.5～110mm |
| AV | F1.6 ～ F3.5 |
| Optical Zoom | 20X |
| Minimum Illumination | 0.5 lux （F1.8, AGC ON） |
| DNR | 2D & 3D |
| White Balance | Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus | Auto / Manual/ One Push Focus |
| Exposure | Auto / Manual |
| BLC | On/Off |
| WDR | OFF/Dynamic level adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | >55dB |

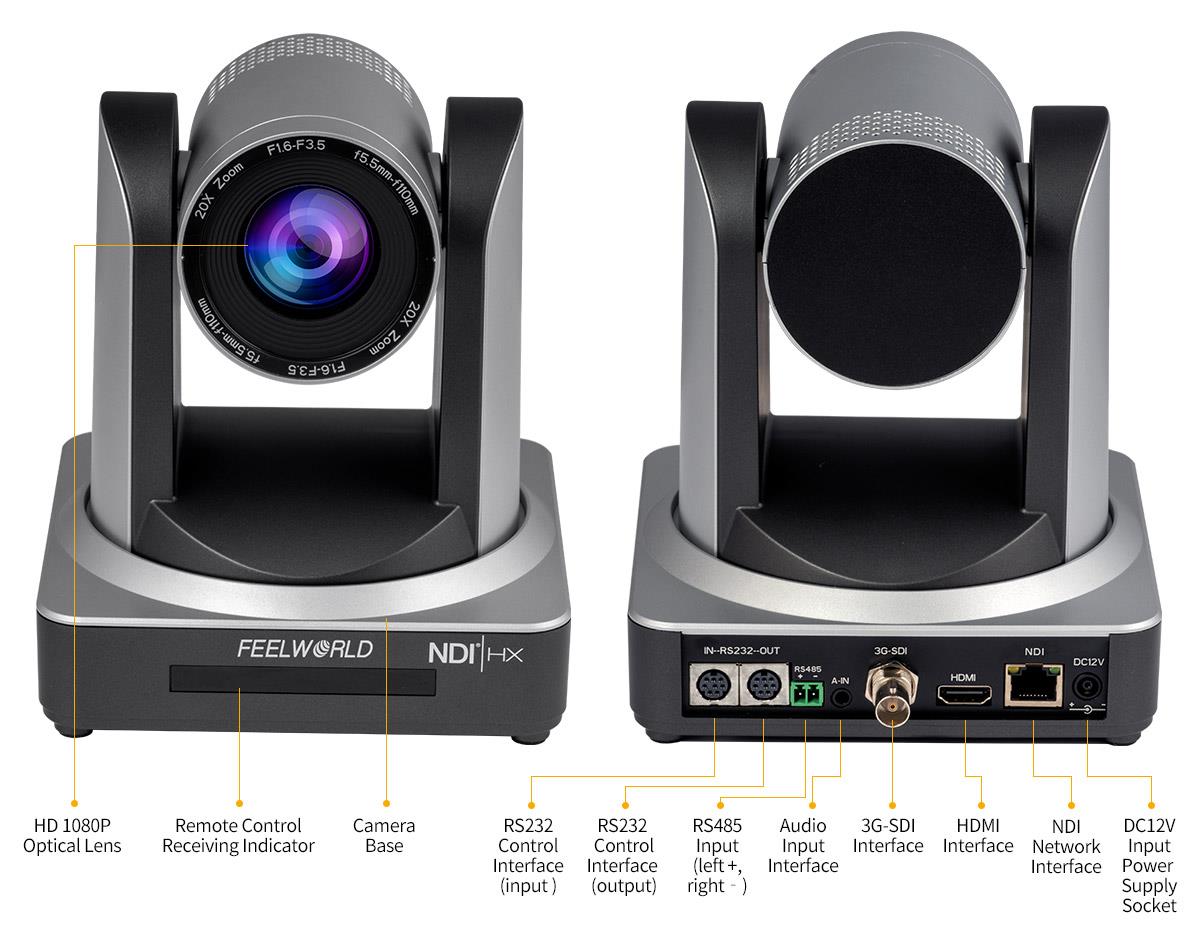

| Video Interface | HDMI, 3G-SDI, NDI |
| Image Code Stream | Double stream outputs simultaneously |
| Video Compression Format | H.264, H.265 |
| Audio Interface | Double track 3.5mm linear input |
| Audio Compression Format | AAC、MP3、G.711A |
| Control Interface | RS232 (IN/OUT), RS485 |
| Control Protocol | VISCA/Pelco-D/Pelco-P |
| HD IP Interface | 100M IP port（10/100BASE-TX) |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, NDI |
| Power Interface | HEC3800 outlet (DC12V) |
| Pan Rotation | -170°～+170° |
| Tilt Rotation | -30°～+90° |
| Pan Control Speed | 0.1 ～60°/sec |
| Tilt Control Speed | 0.1～30°/sec |
| Preset Speed | Pan: 60°/sec, Tilt: 30°/sec |
| Preset Number | 255 presets (10 presets via remote control) |
| Input Voltage | 12V/1.5A |
| Power Consumption | Maximum: 12W |
| Stored Temperature | -40℃～+70℃ |
| Storage Humidity | 20%～90% |
| Working Temperature | -10℃～+50℃ |
| Working Humidity | 20%～80% |

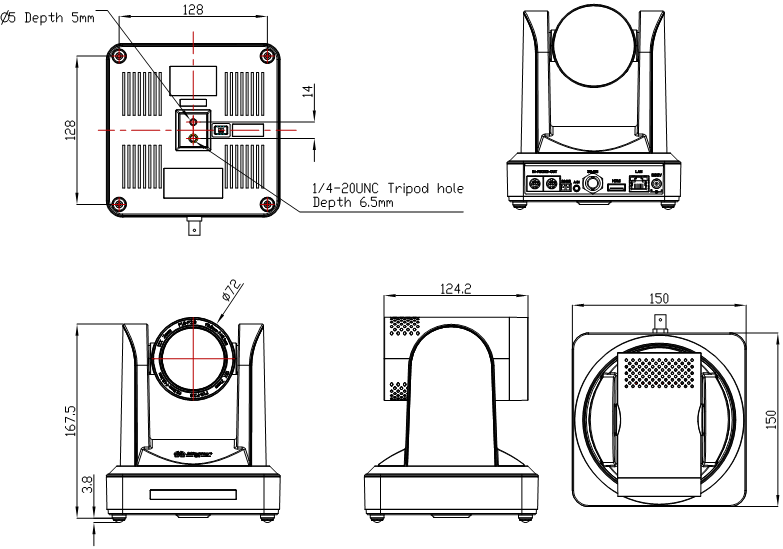

| Dimension (W*H*D) | 150mm×150mm×167.5mm |
| Unit Weight | 1.4kg |
| Outer Carton QTY | 4pcs |
| Outer Carton Size | 52*29*50cm |
| Gross Weight | 9.85kgs |
