Birddog STUDIO NDI Discontinued

$1,035.00

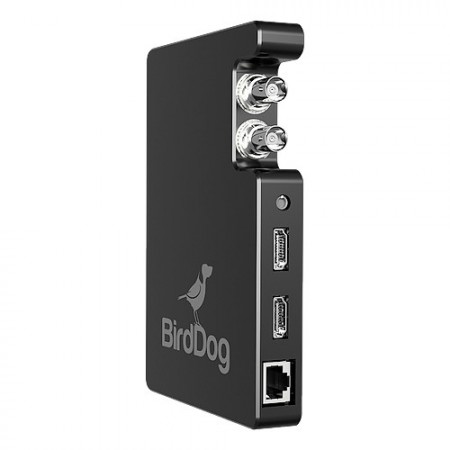

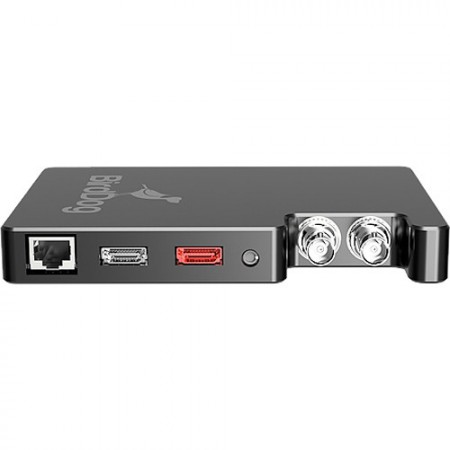

The BirdDog Studio SDI/HDMI to Network Device Interface Converter (Standard) takes HDMI or HD-SDI signals and converts them live to NDI (Network Device Interface). It supports plug-and-play operation and can be powered via AC, DC, or Ethernet (PoE). The converter can be implemented on a device and external tally displays. Configuration and software updates are easily ntrol and configure multiple BirdDog Studio NDI devices through our admin panel which is accessible in a browser.
Now supports encode and decode of video signals.

Out of stock

Join the waitlist to be emailed when this product becomes available
Categories: , , ,

Description

CONNECT ANY CAMERA, COMPUTER OR CONSOLE
TO ANY NETWORK

By connecting your video source to a BirdDog Studio NDI,
your video becomes available anywhere on your network
making connection to your favourite NDI production system a breeze.

Studio NDI is the world’s most versatile, camera mountable, NDI encoder.
With so many features packed into an aircraft grade aluminium case, Studio NDI gives you an unrivalled feature set.

PURE NDI

Studio NDI is the world’s only hardware based encoder supporting NDI at the full Bitrate. Broadcast quality. Ultra-low latency. iFrame codec. No compromises.

TALLY

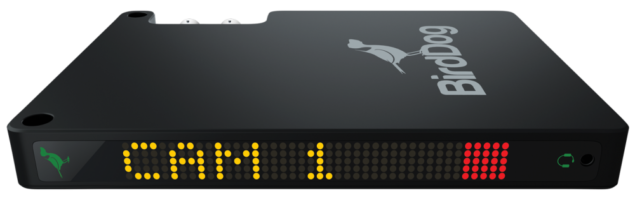

Studio NDI makes Tally easy. Zero configuration, built-in large Tally display, selectable Tally borders on loop out, and an external Tally output.

CROSS CONVERSION

Studio NDI is the world’s only NDI Encoder offering hardware based SDI to HDMI and HDMI to SDI cross conversion.

FLEXIBLE POWER

Studio NDI can be powered by Power over Ethernet (PoE) or D-Tap from your camera battery. No need for a power adapter, although there is one in the box if you need it.

NDI DECODE

Receive any Full NDI stream and decode it back out to SDI or HDMI. Combine with BirdDog Central for a super powerful, yet easy to use routing platform.

AUDIO COMMS

Talk directly with camera operators using BirdDog Comms. Simply plug a headset in to Studio NDI and you are good to go.

Specifications

VIDEO FORMATS

(HD) 1080p 23.98, 25, 29.97, 50, 59.94

(HD) 1080i 25, 29.97

(HD) 720p 50, 59.94

(SD) 525i, 625i

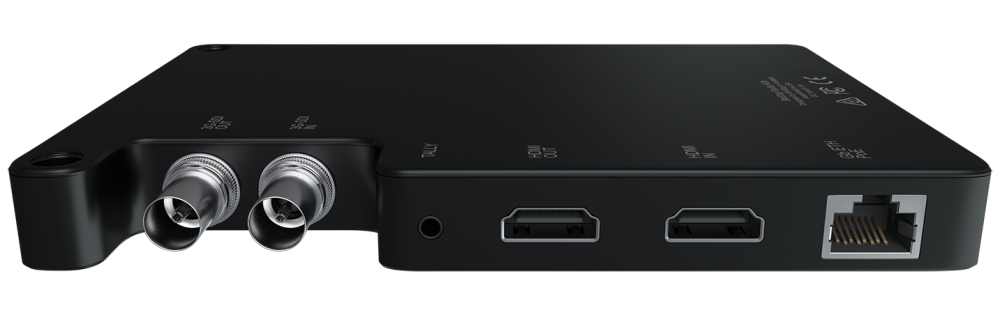

VIDEO INPUT

1 x 3G-SDI, SMPTE-259/292/296/424 (Level A / Level B)

1 x HDMI Standard Type A connector

HDMI v1.4a, RGB or YCbCr

VIDEO OUTPUT

1 x 3G-SDI, SMPTE-259/292/296/424 (Level A)

1 x HDMI Standard Type A connector

HDMI v1.4a, RGB or YCbCr

AUDIO DIGITAL

2-Channel, 24-bit SDI embedded audio,
48 kHz sample rate, synchronous

2-Channel, 24-bit HDMI embedded audio,
48 kHz sample rate, synchronous

AUDIO ANALOG

3.5mm Microphone headset input / output

VIDEO CODEC SUPPORT

Realtime, ultra-low latency, full-bitrate NDI
(i-frame)

DISPLAY

Internal 35×5 tri-colour LED display for
information and tally indication

NETWORK INTERFACE

10/100/1000 Ethernet (RJ-45) with PoE
(Power over Ethernet)

Embedded web configuration panel for
control and firmware updates

USER INTERFACE CONTROLS

Network settings

Video settings

Tally settings

Audio and Comms settings

EXTERNAL TALLY

3.5mm 2 position +5v tally connector

SIZE (W x D x H)

150x105x21mm

WEIGHT

0.3Kg

POWER

100-240V, 50/60 Hz Universal Input, +5-18V
DC7W Max

Power over Ethernet (PoE) 802.3af/at
