Description

THE WORLD’S SMALLEST NDI ENCODER.

ONE BOX. ONE CABLE. UNBELIEVABLE FEATURES.

BirdDog Mini is the only product in the world to offer full-bit rate1080p60 NDI^® Encoding, 1080p60 NDI^® Decoding (using BirdDog Link), Tally, Comms*, and Power over Ethernet.

Main Features:

• Low-Profile NDI Interface
• HDMI Input and Output
• Supports up to 1080p at 59.94 fps
• PoE and DC Power Options
• Tally Communication
• Supports BirdDog Comms
• BirdDog Link Support

Specifications

VIDEO FORMATS
(HD) 1080p 23.98, 25, 29.97, 50, 59.94
(HD) 1080i 25, 29.97
(HD) 720p 50, 59.94
(SD) 525i, 625i

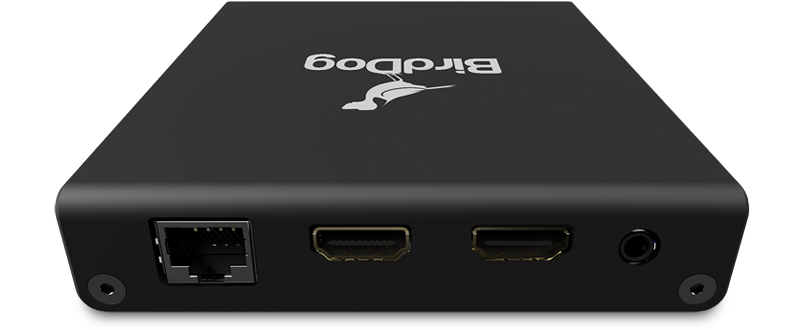

VIDEO INPUT

1 x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr

VIDEO OUTPUT

1 x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr

AUDIO DIGITAL

2-Channel, 24-bit HDMI embedded audio,
48 kHz sample rate, synchronous

AUDIO ANALOG

3.5mm Microphone headset input / output

VIDEO CODEC SUPPORT

Realtime, ultra-low latency, full-bitrate NDI
(i-frame)

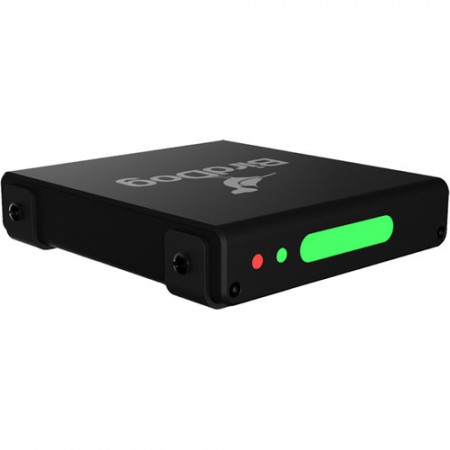

DISPLAY

Bicolor Tally (Red/Green)

Multicolour status information
Full status information on HDMI output (Selectable)

NETWORK INTERFACE

10/100/1000 Ethernet (RJ-45) with PoE
(Power over Ethernet)
Embedded web configuration panel for
control and firmware updates

USER INTERFACE CONTROLS

Network settings
Video settings
Tally settings
Audio and Comms settings

SIZE (W x D x H)

98x110x22mm

WEIGHT

200g

POWER

100-240V, 50/60 Hz Universal Input, +5-18V DC7W Max
Power over Ethernet (PoE) 802.3af/at
