Description

NDI HAS NEVER LOOKED SO GOOD.

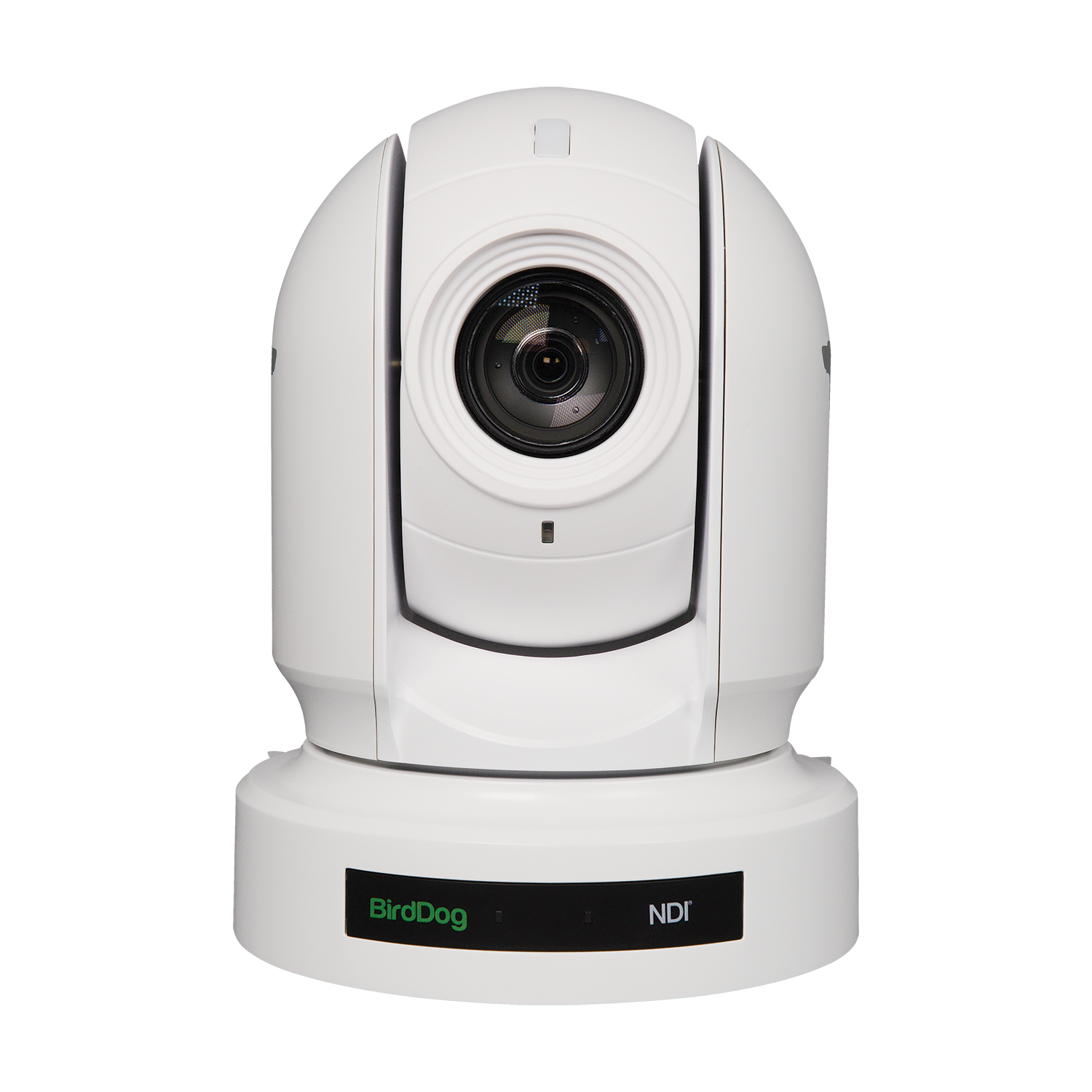

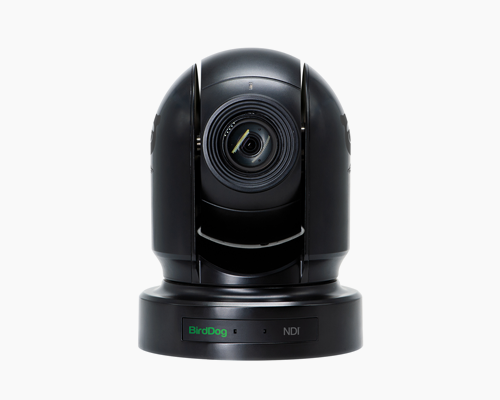

P200 PTZ camera utilises BirdDog’s custom NDI® silicon chip and leverages an impressive Sony CMOS backlit sensor and full Sony Image Module.

Designed for serious production the image quality of P200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus hunting, incredibly sharp images, and amazingly fast zoom.

P200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI, HDMI, and NDI® simultaneously. 3.5mm audio connectors allow P200 to work with BirdDog Comms, the world’s first NDI® audio intercom platform. Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.
P200 has been designed for the most demanding on image quality.

The superior optics make P200 perfect for Sports, Broadcast, Live Event Production, IMAG, Education, and any other application where quality matters. P200 can also be used as a traditional PTZ camera with RS422, RS485, and RS232 control allowing you to move into the world of NDI® when you are ready.

The best pictures come from the best silicon. Combining BirdDog’s custom NDI® silicon chip and a Sony CMOS backlit sensor is a match made in silicon heaven. Your productions deserve the best.

NDI® is an IP codec that comes in multiple flavours. BirdDog P200 uses the full quality version. Full NDI® is an i-frame, variable bit rate codec with an extremely high signal to noise ratio and is designed to run over existing Gigabit networks.
One cable to rule them all. Simply plug a single Gigabit Ethernet cable in from your Power over Ethernet (PoE) switch and you have Video, Audio, Power, and Comms anywhere on your network.

P200 is compatible with BirdDog Comms. Comms is a complete Audio Intercom platform which can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.

SPECIFICATIONS

CAMERA
Image Sensor: 1/2.8” CMOS 2.13MP Lens: 4.3-129mm Optical Zoom: 30x Digital Zoom: 12x Horizontal Angle of View: 63.7° (W) – 2.3° (T) Aperture: F1.6 (W) – F4.7 (T) Min. Illumination: Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode) Shutter Speed: 1/1 – 1/10000s Focus: Auto, Push, Manual White Balance: Auto, Indoor, Outdoor, Manual, OPW, ATW Exposure: Auto, Manual, Shutter/Iris Priority Backlight Compensation: YES

MECHANICAL
Pan Movement: Horizontal: ±350º continuous pan (Zoom Adaptive Speed Range: 0.05°～100°/S ) Tilt Movement: Vertical: +90° to -30° (Zoom Adaptive Speed Range: 0.05°~50°/S) Preset Positions: 128 (Speed adjustable: Up to 150°/s) Preset Speed: 0-5 Level adjustable Environmental: Indoor Operating Temp.: -10 – +50 (°C) Operating Humidity: ≤80%

VIDEO INTERFACE

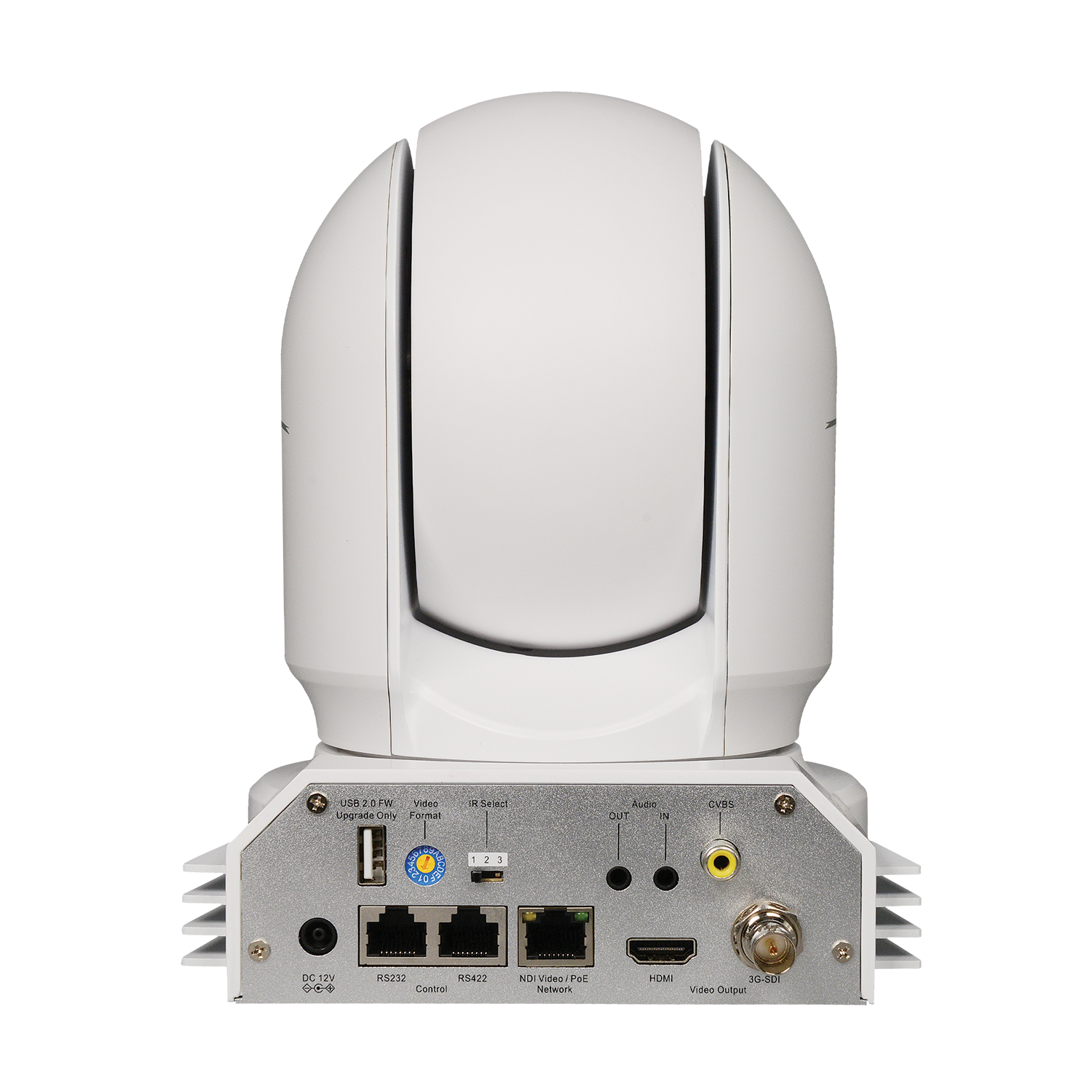

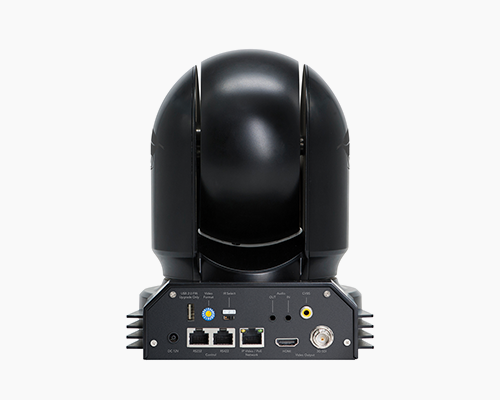

Video Output: NDI/HDMI/SDI Video Formats: 1080p 60, 59.94, 50, 29.97, 25 1080i 60, 59.94, 50 720p 60, 59.94, 50, 29.97, 25 Audio I/O: 3.5mm Audio In (Stereo) 3.5mm Audio Out (Stereo)
CONTROL INTERFACE IP PTZ Control: NDI Control (auto configuring) Serial PTZ Control: 2x RJ45: RS232/RS422/RS485 Serial Control Protocol: VISCA / Pelco D

POWER & DIMENSIONS
Power Input: 12v DC, PoE + (IEEE 802.3at) Dimensions: 160x178x220mm Weight: 2.0Kg

NETWORK
Video Compression: Full NDI – i-frame high quality low latency NDI for production Network Protocol: NDI – Discovery, configuration and control Web Control interface: Full control via Web/Mobile UI inc. Scene presets
