Description

YOUR ENTRY INTO THE WORLD OF NDI.

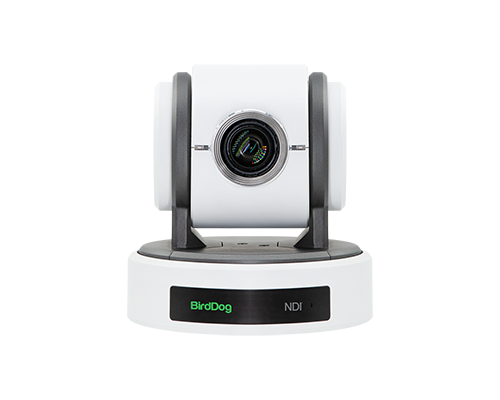

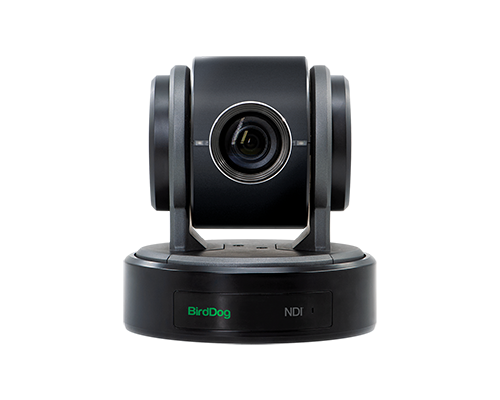

Built on BirdDog’s custom NDI® silicon chip, the P100 PTZ camera is your entry into the world of full NDI®. Featuring frame rates up to 1080p60, 10x optical zoom, and dual SDI and NDI® outputs, P100 gives you professional level quality, performance, and total flexibility.
3.5mm audio connectors allow P100 to work with BirdDog Comms, the world’s first NDI® audio intercom platform.

Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience. Ultra compact and lightweight, P100 has been designed for even the smallest of spaces making it ideal for house of worship, classrooms, corporate training, and live streaming.

P100 can also be used as a traditional PTZ camera with RS422, RS485, and RS232 control allowing you to move into the world of NDI® when you are ready.
EYES P100 FULL NDI. NO COMPROMISES.

BirdDog’s custom NDI® silicon chip is 16ms latency due to it’s super intelligent design. This makes it perfect for any live production, digital signage, and IMAG application.
NDI® is an IP codec that comes in multiple flavours. BirdDog P100 uses the full quality version. Full NDI® is an i-frame, variable bit rate codec with an extremely high signal to noise ratio and is designed to run over existing Gigabit networks.

Weighing in at under 1 kilogram and so small you can install it anywhere, this is the ultimate use anywhere NDI® camera. A great way to cost effectively extend your camera fleet.

P100 is compatible with BirdDog Comms. Comms is a complete Audio Intercom platform which can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.

Specifications

CAMERA

Image Sensor: 1/2.86” CMOS 2.2MP Lens: 4.7 – 47mm Optical Zoom: 10x Digital Zoom: 2x Horizontal Angle of View: 60.9º (W) – 6.43º (T) Aperture: F1.6 (W) – F3.0 (T) Min. Illumination: 0.5 lux Shutter Speed: 1/1 – 1/30000s Focus: Auto, Push, Manual White Balance: Auto, Indoor, Outdoor, Manual, OPW, ATW Exposure: Auto, Manual, Shutter/Iris Priority Backlight Compensation: YES

MECHANICAL

Pan Movement: Horizontal: ±350º continuous pan (Zoom Adaptive Speed Range: 0.05°~100°/S) Tilt Movement: Vertical: +90º to -30º (Zoom Adaptive Speed Range: 0.05°~72°/S) Preset Positions: 128 (Speed adjustable: Up to 150º/s) Preset Speed: 0-5 Level adjustable Environmental: Indoor Operating Temp.: -10 – +50 (ºC) Operating Humidity: ≤80%

VIDEO INTERFACE

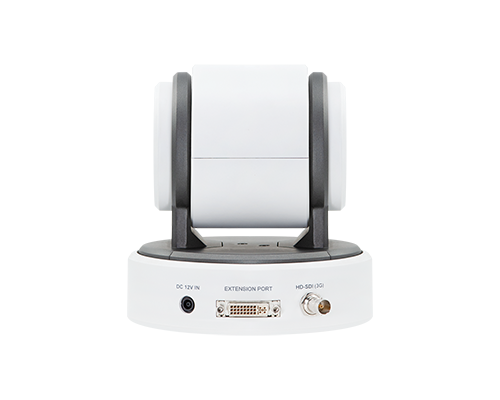

Video Output: NDI/SDI Video Formats: 1080p 60, 59.94, 50, 29.97, 25 1080i 60, 59.94, 50 720p 60, 59.94, 50, 29.97, 25 Audio I/O: 3.5mm Audio In (Stereo) 3.5mm Audio Out (Stereo)

CONTROL INTERFACE

IP PTZ Control: NDI Control (auto configuring) Serial PTZ Control: 2x RJ45: RS232/RS422/RS485 Serial Control Protocol: VISCA / Pelco D

POWER & DIMENSIONS

Power Input: 12v DC Dimensions: 145x145x154mm Weight: 1.0Kg

NETWORK

Video Compression: Full NDI – i-frame high quality low latency NDI for production Network Protocol: NDI – Discovery, configuration and control Web Control interface: Full control via Web/Mobile UI inc. Scene presets
