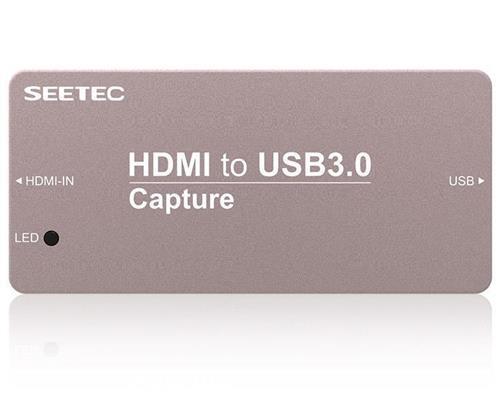

SEETEC HDMI to USB 3 Capture Dongle

$383.90

SEETEC HDMI to USB 3 Capture Dongle

Driverless Capture Card

Standard 12 month RTB Warranty

2 in stock (can be backordered)

SKU: SEETEC-HTUSB Categories: , , ,

Description

SEETEC HDMI to USB 3 Capture Dongle

Driverless Capture Card

Standard 12 month RTB Warranty

Product Features:
1. Capture one single channel HD HDMI video signal.
2. The input and output video signal can reach 1080p/60 Hz.
3. It is compatible with UVC video capture and YUV 422 video output.
4. The UAC is compatible with HDMI audio capture and 48 KHz PCM audio output.
5. It doesn’t need to install a driver, and it is truly Plug-and-Play.
6. It is compatible with Windows, Linux, OS X operating systems.

Advanced Features:

1. USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0 40MB/s.
2. The processing of video and audio is done by the dongle and will not occupy the CPU.
3. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
4. It can automatically detect the input audio formats and swift it to 48KHz PCM audio.
5. Multiple dongles can be used on one PC
6. The firmware can be updated.
 Model   HTUSB
 Host Interface  USB3.0, *300-350MB/s throughput (USB2.0, *40MB/s throughput)
 Input Interface  1 HDMI interface
HDMI Input Formats
It meets the HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV)
Input Formats
Resolutions: 640×360/640×480/720×480/
720×576/768×576/800×600/856×480/960×540/
1024×576/1024×768/1280×720/1280×800/
1280×960/1280×1024/1368×768/1440×900/
1600×1200/1680×1050/1920×1080
Frame Rate: 25/29.97/30/50/59.94/60 fps
Output Formats
Resolutions: 640×360/640×480/720×480/
720×576/768×576/800×600/856×480/960×540/
1024×576/1024×768/1280×720/1280×800/
1280×960/1280×1024/1368×768/1440×900/
1600×1200/1680×1050/1920×1080/1920×1200
Video Sampling Rate
HDMI: 165MHz
Audio and Video Capture
It meets the standards of UVC (USB video class) and UAC (USB audio class)
Output Color Space
YUY2, RGB24
Onboard Memory
128 MB DDR3,16 bits@ 400MHz
O/S Support
(x86 and x64 versions):
Windows 7
Windows 8
Windows 10
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above)
Software Compatibility
QuickTime Broadcaster (OS X)
vMix (Windows)
Daum Potplayer (Windows, OS X)
XSplit Broadcaster (Windows, OS X)
VLC (Windows, OS X, Linux)
Wirecast (Windows, OS X) etc.
Cloud Video Conferencing Service
Livestream
Skype
Hangouts
OBS etc.
General
 Power Consumption  ≤5W
 Working Current  0.8A
 Working Temperature  -10℃ ~ 50℃
 Storage Temperature  -20℃ ~ 60℃
 Unit Size  109.5L×51H×17.6D (mm)
 Unit Weight  148g
